名称: | 日本THK直线导轨SSR-XV系列 |
---|---|
产地: | 日本 |
品牌: | THK |
产品描述
Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | |||||
Radial | |||||||||
Height | Width | Length | B | S x l | Pitch | d1xd2xh | Dynamic | Static | |
M | W | L | F | rating | rating | ||||
C | C0 | ||||||||
mm | mm | mm | mm | mm | mm | mm | kN | kN | |
SSR15XV | 24 | 34 | 40.3 | 26 | M4 x 7 | 60 | 4.5x7.5x5.3 | 9.1 | 9.7 |
SSR20XV | 28 | 42 | 47.7 | 32 | M5 x 8 | 60 | 6x9.5x8.5 | 13.4 | 14.4 |
SSR25XV | 33 | 48 | 60 | 35 | M6 x 9 | 60 | 7x11x9 | 21.7 | 22.5 |
日本THK直线导轨SSR-XV系列主要用途:
●平面磨床工作台
●工具磨床工作台
●放电加工机
●印刷电路板钻孔机
●贴片机
●高速搬送装置
●机器人的行走部位
●加工中心机
●NC车床
●5面加工机工作台
●搬送装置
●冲压机模具导向部
●检查装置
●试验机
●食品机械
●医疗机器
●三坐标测量设备
●包装机
●射出成形机
●木工机
●超精密工作台
● 半导体/液晶制造装置
日本THK直线导轨SSR-XV系列

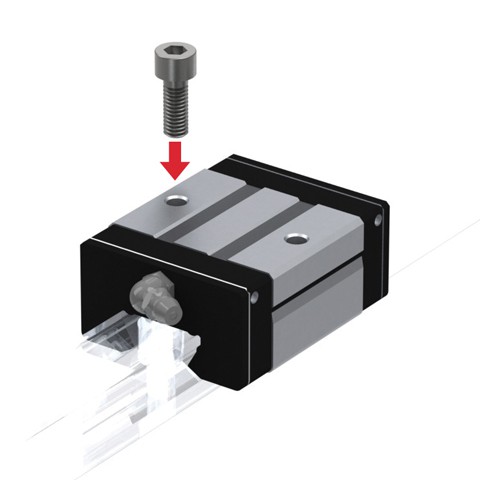

SSR15XV1UU(GK)BLOCK
SSR20XV1UU(GK)BLOCK
SSR25XV1UU(GK)BLOCK
SSR15XV1SS(GK)BLOCK
SSR20XV1SS(GK)BLOCK
SSR25XV1SS(GK)BLOCK
SSR15XV1DD(GK)BLOCK
SSR20XV1DD(GK)BLOCK
SSR25XV1DD(GK)BLOCK
SSR15XV1ZZ(GK)BLOCK
SSR20XV1ZZ(GK)BLOCK
SSR25XV1ZZ(GK)BLOCK
SSR15XV1KK(GK)BLOCK
SSR20XV1KK(GK)BLOCK
SSR25XV1KK(GK)BLOCK
SSR15XV1SSHH(GK)BLOCK
SSR20XV1SSHH(GK)BLOCK
SSR25XV1SSHH(GK)BLOCK
SSR15XV1DDHH(GK)BLOCK
SSR20XV1DDHH(GK)BLOCK
SSR25XV1DDHH(GK)BLOCK
SSR15XV1ZZHH(GK)BLOCK
SSR20XV1ZZHH(GK)BLOCK
SSR25XV1ZZHH(GK)BLOCK
SSR15XV1KKHH(GK)BLOCK
SSR20XV1KKHH(GK)BLOCK
SSR25XV1KKHH(GK)BLOCK
SSR15XV1QZUU(GK)BLOCK
SSR25XV1QZUU(GK)BLOCK
SSR25XV1QZUU(GK)BLOCK
SSR15XV1QZSS(GK)BLOCK
SSR25XV1QZSS(GK)BLOCK
SSR25XV1QZSS(GK)BLOCK
SSR15XV1QZDD(GK)BLOCK
SSR25XV1QZDD(GK)BLOCK
SSR25XV1QZDD(GK)BLOCK
SSR15XV1QZZZ(GK)BLOCK
SSR25XV1QZZZ(GK)BLOCK
SSR25XV1QZZZ(GK)BLOCK
SSR15XV1QZKK(GK)BLOCK
SSR25XV1QZKK(GK)BLOCK
SSR25XV1QZKK(GK)BLOCK
SSR15XV1QZSSHH(GK)BLOCK
SSR25XV1QZSSHH(GK)BLOCK
SSR25XV1QZSSHH(GK)BLOCK
SSR15XV1QZDDHH(GK)BLOCK
SSR25XV1QZDDHH(GK)BLOCK
SSR25XV1QZDDHH(GK)BLOCK
SSR15XV1QZZZHH(GK)BLOCK
SSR25XV1QZZZHH(GK)BLOCK
SSR25XV1QZZZHH(GK)BLOCK
SSR15XV1QZKKHH(GK)BLOCK
SSR25XV1QZKKHH(GK)BLOCK
SSR25XV1QZKKHH(GK)BLOCK
