名称: | 日本THK直线导轨HR系列 |
---|
产品描述
Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||||||||||||||
Radial | ||||||||||||||||||||||
Height | Width | W0 | Length | B1 | C | H | S | h2 | L1 | T | K | S | Greasing hole | D1 | Width | W4 | Height | Pitch | d1xd2xh | Dynamic | Static | |
M | W | L | d | W1 | M1 | F | rating | rating | ||||||||||||||
C | C0 | |||||||||||||||||||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | ||

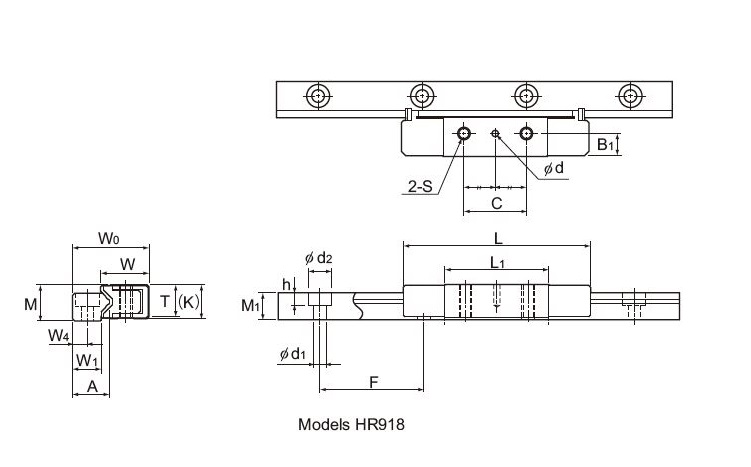

HR918 | 8.5 | 11.4 | 18 | 45 | 5.5 | 15 | - | M3 | - | 25 | 7.5 | 8 | 1.5 | - | 6.7 | 3.5 | 8.7 | 6.5 | 25 | 4.5x7.5x3 | 2.82 | 3.48 |
Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||||||||||||||
Radial | ||||||||||||||||||||||
Height | Width | W0 | Length | B1 | C | H | S | h2 | L1 | T | K | S | Greasing hole | D1 | Width | W4 | Height | Pitch | d1xd2xh | Dynamic | Static | |
M | W | L | d | W1 | M1 | F | rating | rating | ||||||||||||||
C | C0 | |||||||||||||||||||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | ||
HR1123 | 11 | 13.7 | 23 | 52 | 7 | 15 | 2.55 | M3 | 3 | 30 | 9.5 | 10 | 2 | 5 | 9.5 | 5 | 11.6 | 8 | 40 | 3.5x6x4.5 | 4.09 | 4.93 |
HR1530 | 15 | 19.2 | 30 | 69 | 10 | 20 | 3.3 | M4 | 3.5 | 40 | 13 | 14 | 2 | 6.5 | 10.7 | 6 | 13.5 | 11 | 60 | 3.5x6x4.5 | 7.56 | 8.77 |
HR2042 | 20 | 26.3 | 42 | 91.6 | 13 | 35 | 5.3 | M6 | 5.5 | 56.6 | 17.5 | 19 | 3 | 10 | 15.6 | 8 | 19.5 | 14.5 | 60 | 6x9.5x8.5 | 17 | 18.2 |
HR2042T | 20 | 26.3 | 42 | 110.7 | 13 | 50 | 5.3 | M6 | 5.5 | 75.7 | 17.5 | 19 | 3 | 10 | 15.6 | 8 | 19.5 | 14.5 | 60 | 6x9.5x8.5 | 20.8 | 24.3 |
THK直线导轨HR系列主要用途:
●放电加工机的XYZ轴
●精密工作台
●NC车床的XZ轴
●装配机器人
●搬送装置
●加工中心机
●线切割机
●刀具交换装置
●木工机
THK直线导轨HR系列主要产品主要为:
THK HR918UU(GK) BLOCK
THK HR1123UU(GK) BLOCK
THK HR1530UU(GK) BLOCK
THK HR2042UU(GK) BLOCK
THK HR918UUM(GK) BLOCK
THK HR1123UUM(GK) BLOCK
THK HR1530UUM(GK) BLOCK
THK HR2042UUM(GK) BLOCK
