产品中心
| 名称: | 韩国光宇KWANG WOO光学编码器KHB40系列 |
|---|---|
| 品牌: | KWANG WOO |
| 品牌: | 光宇 |
| 产品: | 光学编码器 |
| 系列: | KHB40 |
产品描述

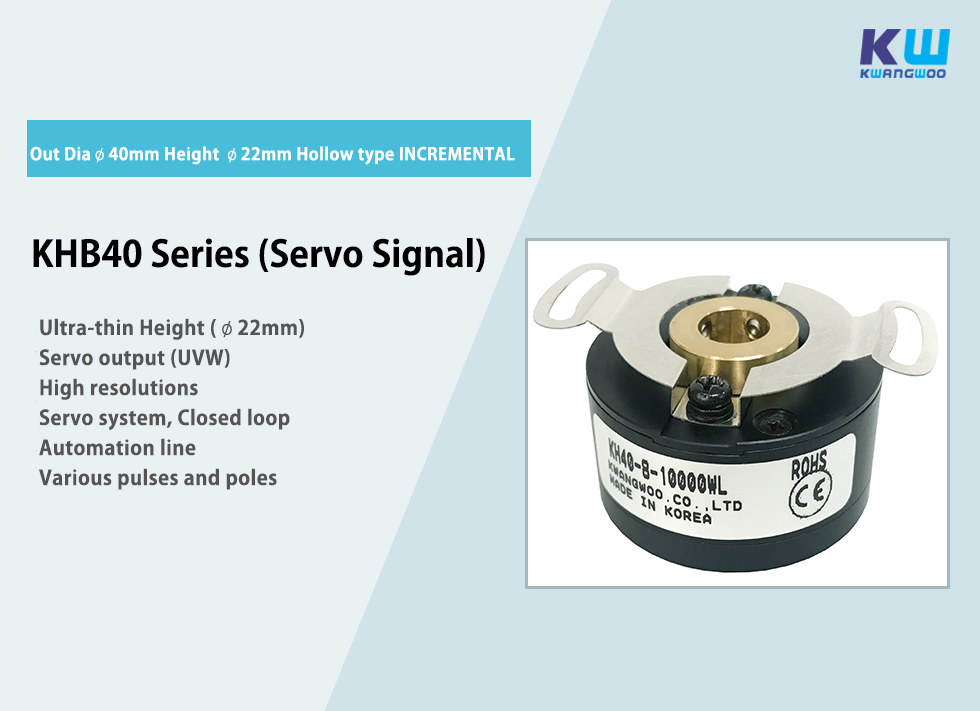

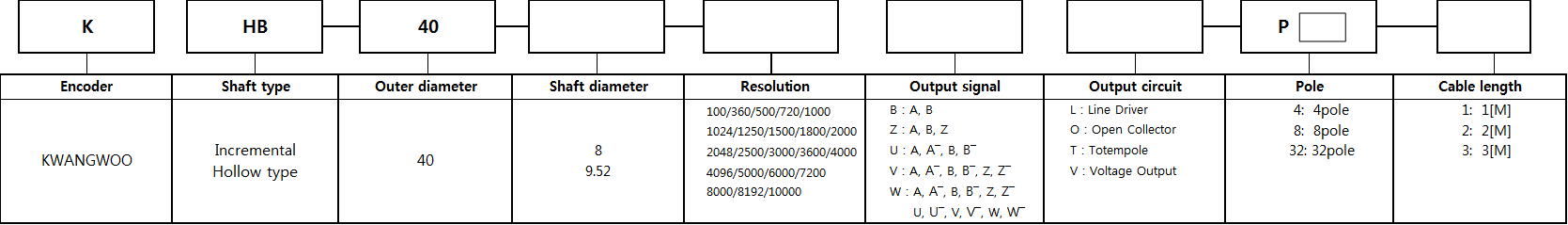

韩国光宇KWANG WOO光学编码器KHB40系列

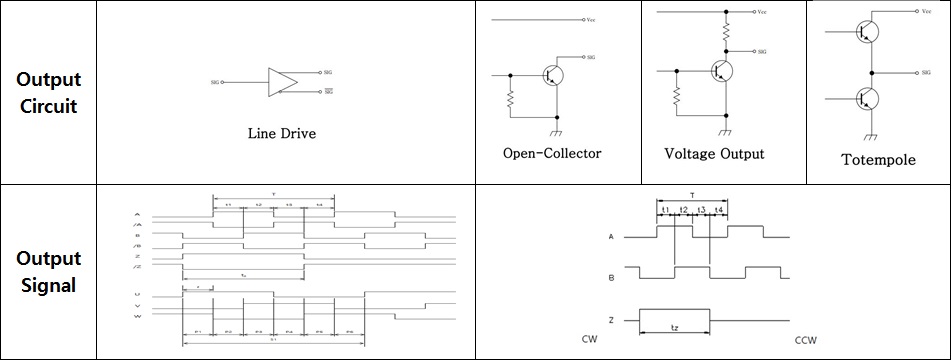

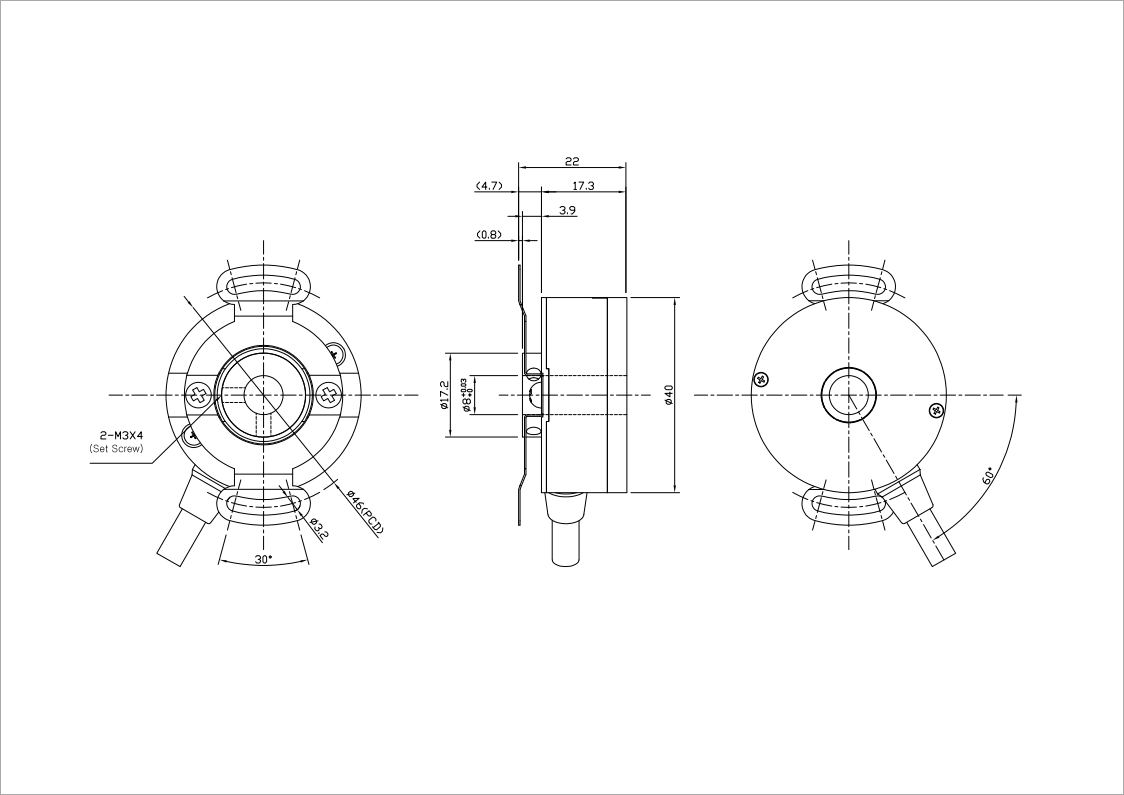

| Electrical Spec | ||
| Resolution(P/R) | 100/360/500/720/1000/1024/1250/1440/1500/1800/2000/2048/2500 | |
| 3000/3600/4000/4096/5000/6000/7200/8000/8192/10000 | ||
| Supply Voltage | Line drive | VL = 0.5V |
| VH = 2.7 (DC+5V) | ||
| Open Collector | VL = 0.5V | |
| Voltage Output | VH = 2.7 (DC+5V), 9 (DC+12), 20(DC+24V) | |
| Totempole | ||
| Current | 170㎃ Max. | |
| Consumption | ||
| Response | 500㎑ Max | |
| Frequency | ||
| Rising / Falling Time | Line drive | 0.1㎲ |
| Open Collector | 3㎲ | |
| Voltage Output | ||
| Totempole | ||
| Mechanical Spec | ||
| RPM.Max | 8,000 rpm | |
| Starting torque | 80gf.㎝ | |
| Allowable shaft load | Radial | 2.5kg Max. |
| Axial | 1.3kg Max. | |
| Vibration resistance | 5G | |
| Shock resistance | 50G | |
| Operation temp | -20℃ ∼ +100℃ | |
| Storage temp | -40℃ ∼ +125℃ | |
| Protection | IP50 | |
| Cable | Φ5.5, 2C6P(AWG28) Shield cable | |
| Weight | 100g | |
| Connection Table | ||
| Color | Line drive | Open Collector |
| Voltage Output | ||
| Totem pole | ||
| RED | Vcc | Vcc |
| BLACK | GND | GND |
| GREEN | A | A |
| GREEN/BLACK | /A | – |
| WHITE | B | B |
| WHITE/BLACK | /B | – |
| YELLOW | Z | Z |
| YELLOW/BLACK | /Z | – |
| ORANGE | U | – |
| ORANGE/BLACK | /U | – |
| PINK | V | – |
| PINK/BLACK | /V | – |
| GRAY | W | – |
| GRAY/BLACK | /W | – |
| SHIELD | F/G | F/G |
